Configuration

Configuration is managed through config/wallet/wallet.php and environment variables. A starter config directory should have been automatically copied to config/wallet/ on installation with placeholder images and README guides for each platform.

Before configuring settings, you'll need to set up your Apple and Google credentials. See the Setup guide for step-by-step instructions for both Apple Wallet and Google Wallet.

Configuration Debugging

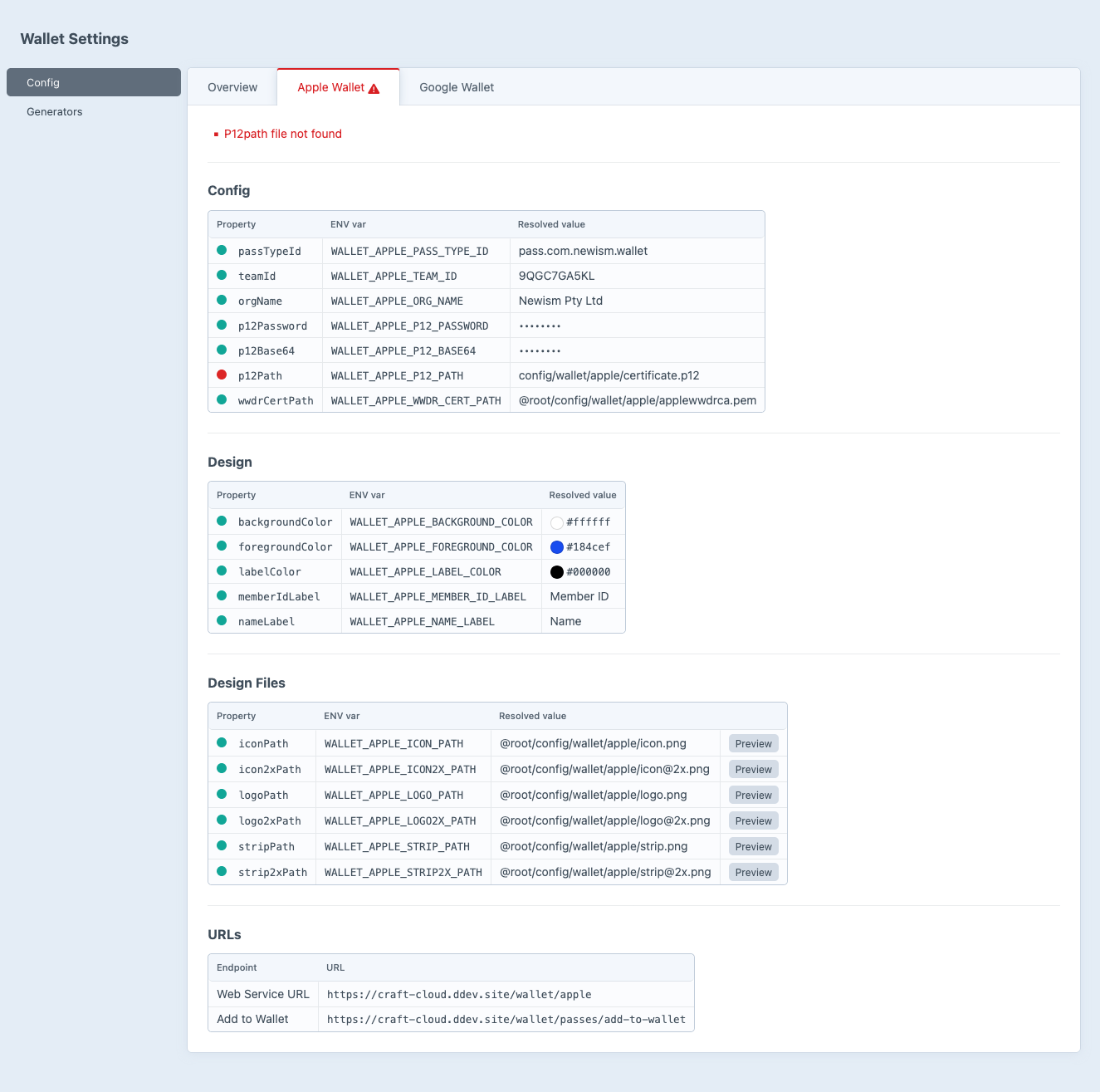

The plugin provides a comprehensive configuration debugging page that shows the resolved settings values for both Apple and Google Wallet, including which values are coming from config files and which are coming from environment variables. This is a great way to verify that your configuration is set up correctly and that your credentials are being read properly.

Configuration options

All settings can also be set via environment variables. ENV vars always take precedence over config file values.

Property names are mapped to env vars automatically using SNAKE_CASE with a prefix:

Apple Wallet: WALLET_APPLE_ prefix (e.g. passTypeId → WALLET_APPLE_PASS_TYPE_ID)
Google Wallet: WALLET_GOOGLE_ prefix (e.g. issuerId → WALLET_GOOGLE_ISSUER_ID)

Apple Wallet Settings

Identifiers

`passTypeId`

ENV: WALLET_APPLE_PASS_TYPE_ID
Accepts: string
Default: —

Pass Type Identifier (e.g. `pass.com.example.membership`)

`teamId`

ENV: WALLET_APPLE_TEAM_ID
Accepts: string
Default: —

Apple Developer Team ID

`orgName`

ENV: WALLET_APPLE_ORG_NAME
Accepts: string
Default: —

Organisation name displayed on the pass

Credentials

`p12Password`

ENV: WALLET_APPLE_P12_PASSWORD
Accepts: string
Default: —

Password for the `.p12` certificate

`p12Base64`

ENV: WALLET_APPLE_P12_BASE64
Accepts: string
Default: —

Base64-encoded `.p12` certificate (serverless)

`p12Path`

ENV: WALLET_APPLE_P12_PATH
Accepts: string
Default: @root/config/wallet/apple/certificate.p12

Path to P12 certificate (set to empty when using `p12Base64`)

`wwdrCertPath`

ENV: WALLET_APPLE_WWDR_CERT_PATH
Accepts: string
Default: @root/config/wallet/apple/applewwdrca.pem

Path to WWDR CA certificate

Design

`backgroundColor`

ENV: WALLET_APPLE_BACKGROUND_COLOR
Accepts: string
Default: #ffffff

Pass background color (hex)

`foregroundColor`

ENV: WALLET_APPLE_FOREGROUND_COLOR
Accepts: string
Default: #184cef

Text color (hex)

`labelColor`

ENV: WALLET_APPLE_LABEL_COLOR
Accepts: string
Default: #000000

Label text color (hex)

`memberIdLabel`

ENV: WALLET_APPLE_MEMBER_ID_LABEL
Accepts: string
Default: Member ID

Header field label

`nameLabel`

ENV: WALLET_APPLE_NAME_LABEL
Accepts: string
Default: Name

Secondary field label

Images

`iconPath`

ENV: WALLET_APPLE_ICON_PATH
Accepts: string
Default: @root/config/wallet/apple/icon.png

Path to icon image

`icon2xPath`

ENV: WALLET_APPLE_ICON2X_PATH
Accepts: string
Default: @root/config/wallet/apple/icon@2x.png

Path to retina icon

`logoPath`

ENV: WALLET_APPLE_LOGO_PATH
Accepts: string
Default: @root/config/wallet/apple/logo.png

Path to logo image

`logo2xPath`

ENV: WALLET_APPLE_LOGO2X_PATH
Accepts: string
Default: @root/config/wallet/apple/logo@2x.png

Path to retina logo

`stripPath`

ENV: WALLET_APPLE_STRIP_PATH
Accepts: string
Default: @root/config/wallet/apple/strip.png

Path to strip image

`strip2xPath`

ENV: WALLET_APPLE_STRIP2X_PATH
Accepts: string
Default: @root/config/wallet/apple/strip@2x.png

Path to retina strip

Google Wallet Settings

Identifiers

`issuerId`

ENV: WALLET_GOOGLE_ISSUER_ID
Accepts: string
Default: —

Google Wallet Issuer ID

`orgName`

ENV: WALLET_GOOGLE_ORG_NAME
Accepts: string
Default: —

Card title / organisation name

`classSuffix`

ENV: WALLET_GOOGLE_CLASS_SUFFIX
Accepts: string
Default: membership

Pass class suffix

Credentials

`serviceAccountJsonBase64`

ENV: WALLET_GOOGLE_SERVICE_ACCOUNT_JSON_BASE64
Accepts: string
Default: —

Base64-encoded service account JSON (serverless)

`serviceAccountJsonPath`

ENV: WALLET_GOOGLE_SERVICE_ACCOUNT_JSON_PATH
Accepts: string
Default: @root/config/wallet/google/service-account.json

Path to service account JSON (set to empty when using `serviceAccountJsonBase64`)

Design

`backgroundColor`

ENV: WALLET_GOOGLE_BACKGROUND_COLOR
Accepts: string
Default: #ffffff

Card background color (hex)

`subHeader`

ENV: WALLET_GOOGLE_SUB_HEADER
Accepts: string
Default: Member

Sub-header text below user's name

`memberIdLabel`

ENV: WALLET_GOOGLE_MEMBER_ID_LABEL
Accepts: string
Default: Member ID

Text module header label

Images

`logoPath`

ENV: WALLET_GOOGLE_LOGO_PATH
Accepts: string
Default: @root/config/wallet/google/logo.png

Path to logo image

`heroPath`

ENV: WALLET_GOOGLE_HERO_PATH
Accepts: string
Default: @root/config/wallet/google/hero.png

Path to hero image

Config File Example

Create config/wallet/wallet.php to set defaults. Env vars will still override any values set here.

php

use newism\wallet\models\AppleSettings;
use newism\wallet\models\GoogleSettings;

return [
    'apple' => AppleSettings::create()
        ->passTypeId('pass.com.example.membership')
        ->teamId('XXXXXXXXXX')
        ->orgName('My Organisation')
        ->backgroundColor('#000000')
        ->foregroundColor('#d4af37')
        ->labelColor('#a98c2c')
        ->memberIdLabel('Member ID')
        ->nameLabel('Name'),

    'google' => GoogleSettings::create()
        ->issuerId('3388000000022229999')
        ->orgName('My Organisation')
        ->classSuffix('membership')
        ->backgroundColor('#000000')
        ->subHeader('Gold Member')
        ->memberIdLabel('Member ID'),
];

Craft Cloud / Serverless Environments

In serverless environments like Craft Cloud you can't upload files to the server. Instead, store sensitive credentials as base64-encoded environment variables.

Run the setup command to base64-encode your credentials and write them to .env:

bash

php craft wallet/setup/env-base64

This reads the files at apple.p12Path and google.serviceAccountJsonPath from your resolved settings, base64-encodes them, and appends (or updates) the following block in your .env:

env

###> newism/craft-wallet ###
WALLET_APPLE_P12_BASE64="MIIKYgIBAzCCCi..."
WALLET_GOOGLE_SERVICE_ACCOUNT_JSON_BASE64="eyJ0eXBlIjoic2VydmljZV9hY2NvdW50Ii..."
###< newism/craft-wallet ###

When these env vars are set, the plugin uses them automatically. The certificate.p12 and service-account.json files are not needed on the server.

Since the credential files won't exist in cloud environments, set the corresponding path properties to empty via environment variables to avoid file-not-found errors on the settings page:

env

WALLET_APPLE_P12_PATH=""
WALLET_GOOGLE_SERVICE_ACCOUNT_JSON_PATH=""

You can re-run the command any time you update your credentials.
